  • Home
  • Shindaiwa DGW600DM-AC - Engine Driven Welder

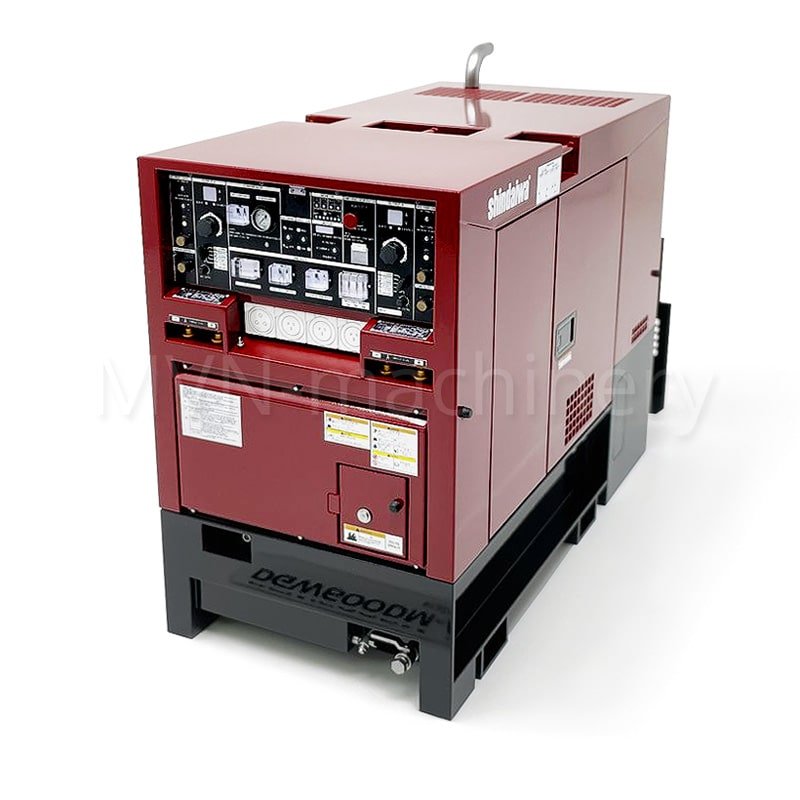

Engine Driven Welder Shindaiwa DGW600DM-AC

Engine Driven Welder Shindaiwa DGW600DM-AC
Short description

The Shindaiwa DGW600DM-AC is a dual welding station unit (600 A - 300*2), with auxiliary power of 9.6 kW (single-phase) and 21.5 kW (three-phase). DGW600DM-AC can also function as a compressor, combining exceptional power, air supply capability, welding functionalities, integrated energy generation, and versatility. It is designed for use in remote locations and job sites without access to power grids.

  • Manufacturer Shindaiwa
  • Made in Japan
  • Product article DGW600DM-AC
Find out the price via request Schedule a Demo Quickly contact for information
Warranty 3 year warranty Shindaiwa
Simul Phase Technology of Shindaiwa
1-day maintenance 1-day maintenance
Specification Reviews
0

Engine Driven Welder Shindaiwa DGW600DM-AC - full description

The diesel installation DGW600DM-AC by the Japanese manufacturer Shindaiwa consists of two welding stations and a generator (single-phase – 9.6 kW / 10.8 kVA; three-phase – 18.0 kW / 21.5 kVA), producing electrical current for welding and related tasks. The diesel Engine Driven Welder ensures stable simultaneous operation of two welding stations at a maximum load of 300A * 2.

The power and reliability of the diesel generator are based on the Kubota V3600-T engine (Japan), designed for heavy-duty conditions. This combination allows for quick and efficient welding operations in field conditions (locations remote from power grids). Applications of the Shindaiwa welding unit include:

  • Mining industry (bucket repair, maintenance and repair of support structures, etc.);
  • Transportation companies (railway and marine infrastructure repair);
  • Large-scale construction projects (structural metalwork and ongoing welding tasks);
  • Tunnel construction;
  • Laying and repair of oil and gas pipelines.

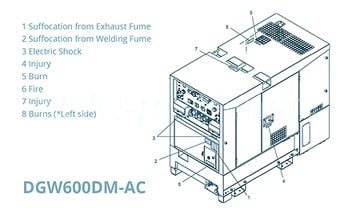

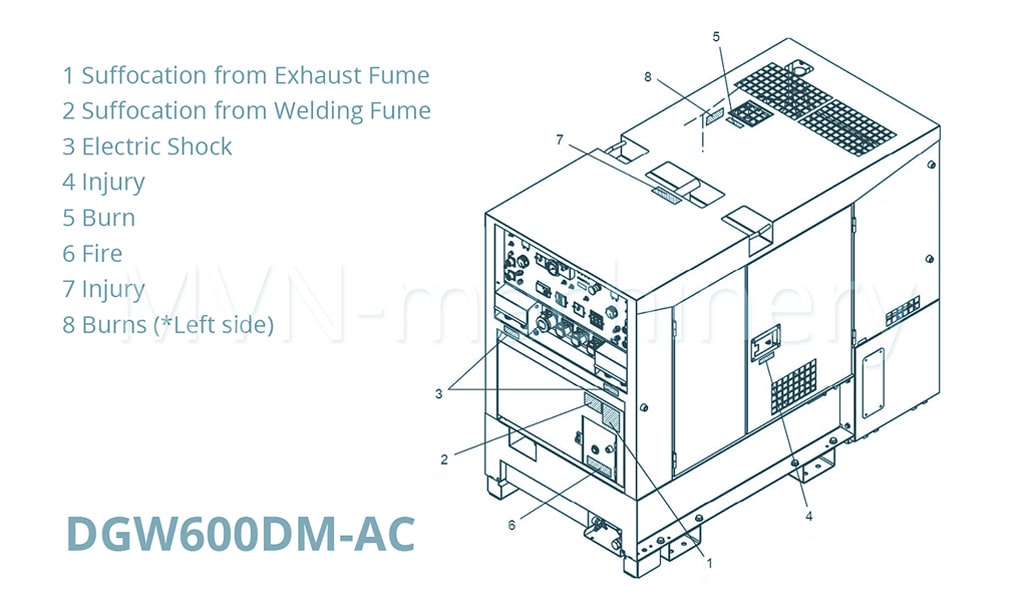

General schema Shindaiwa DGW600DM-AC

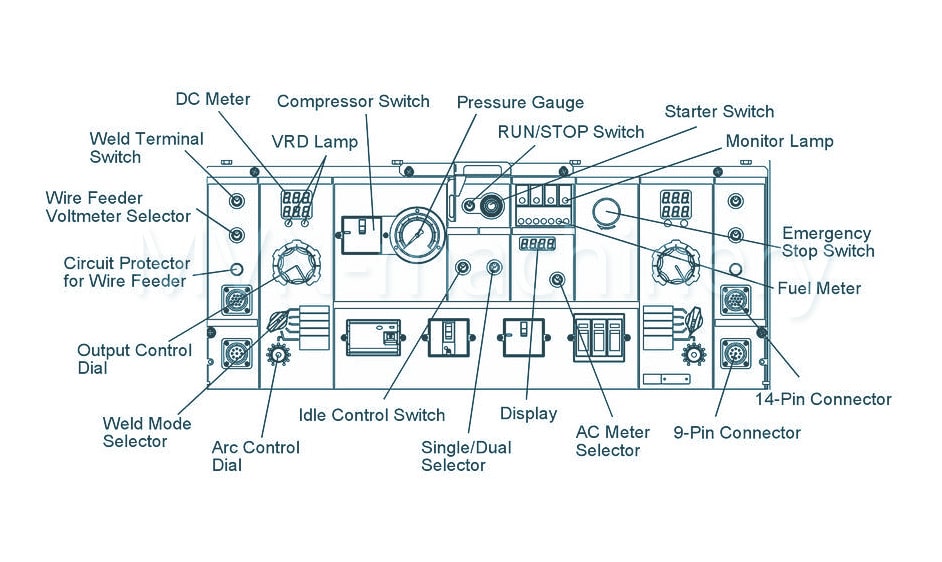

Control Panel of Shindaiwa DGW600DM-AC
Control Panel of Engine Driven Welder DGW600DM-AC

Simultaneously, at a nominal current of 570/300 A (Single field/Dual field), the DGW600DM-AC Diesel Welder can be used as a power source for:

  • Power tools (3 units with a total power of 9.6 kW);
  • Pneumatic tools;
  • Illumination of work areas;
  • Household appliances.

Notably, the DGW600DM-AC model by Shindaiwa can also be used as a compressor with a capacity of 24 / 30 CFM.

Versatility and Welding Modes of the Engine Driven Welder.

The power source based on the Kubota V3600-T diesel engine in the DGW600DM-AC Shindaiwa unit can switch between CC (constant current) and CV (constant voltage) welding types. Therefore, the Shindaiwa diesel welding unit can be used in the following welding modes:

  • CV-WIRE;
  • DROOP-STICK;
  • GOUGING;
  • LIFT START TIG;
  • CC-STICK;
  • SCRATCH START TIG.

Independent Windings of the Diesel Generator.

The soundproofed Engine Driven Welder DGW600DM-AC by Shindaiwa, driven by the Kubota V3600-T diesel engine, has three generator windings that are structurally independent of each other. This technical solution prevents a reduction (sag) in electrical current during simultaneous operation of two welding stations and a loaded power station. As a result, the DGW600DM-AC Shindaiwa can simultaneously power two welding stations, a welding inverter, and power tools, ensuring efficient operation for installation and repair teams.

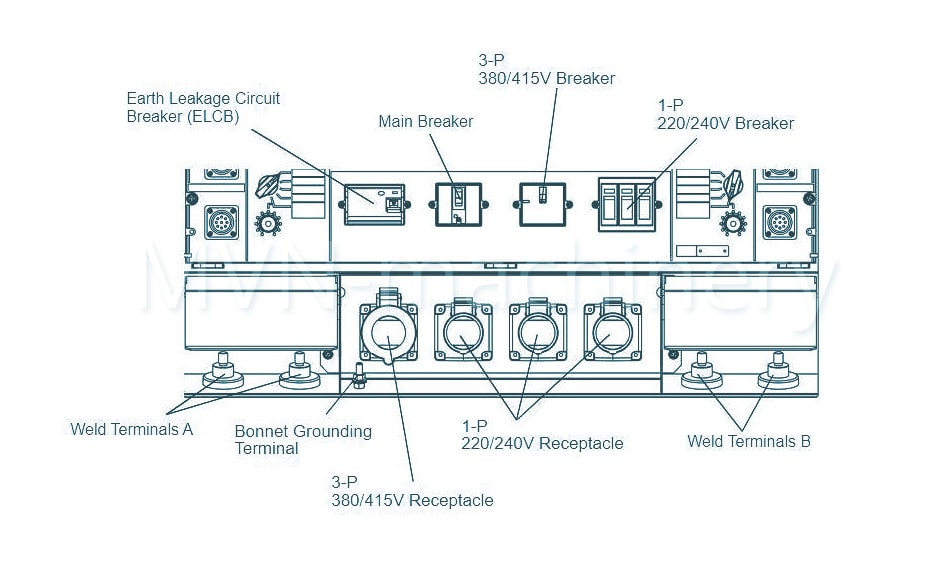

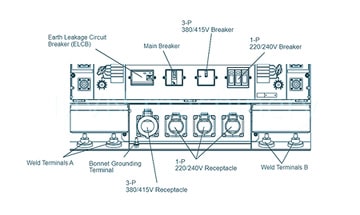

Using DGW600DM-AC as a Generator.

Types and Output Ranges:

1/ 3-phase, 380/415 V The equipment includes one 3-phase socket at 380/415 V. The total maximum power available from the sockets is 18.0 kW / 21.5 kVA.

2/ 1-phase 220/240 V The equipment includes three 1-phase sockets at 220/240 V. The total maximum power available from the three sockets is 9.6 kW / 10.8 kVA.

Similar devices
  • Engine Driven Welder DGW400DMK Engine Driven Welder DGW400DMK
Frequently viewed
  • Driven Engine Welder HDW310M-I / Econom and Quiet Driven Engine Welder HDW310M-I / Econom and Quiet

Engine Driven Welder Shindaiwa DGW600DM-AC - Specifications

Welding Generator

  • CC DROOP
    Single field Dual field
  • Rated Current (A)
    570 300
  • Rated Voltage (V)
    42.8 28.0
  • Duty Cycle (%)
    60 100
  • Current Adj. Range (A)
    30 – 600 30 – 340
  • Welding Rod (mm)
    2.0 - 8.0 2.0 - 6.0
  • Gouging Rod (mm)
    3.2 - 11.0 3.2 - 8
  • CV
    Single field Dual field
  • Rated Current (A)
    520 300
  • Rated Voltage (V)
    40.8 28.0
  • Duty Cycle (%)
    100 100
  • Current Adj. Range (A)
    60 – 600 60 – 340
  • Voltage Adj. Range (V)
    14.0 – 44.0 14.0 – 32.0
  • Welding Wire MIG/MAG (mm)
    0.6 - 1.2 0.6 - 1.2
  • Welding Wire Self-shielded (mm)
    0.9 - 2.4 0.9 - 2.4
  • Rated Speed (mim-1)
    1500 / 1800
  • No Load Voltage (V)
    MAX 85

AC Generator

  • Rated Frequency (Hz)
    50 / 60
  • Rated Speed (mim-1)
    1500 / 1800
  • Rating
    Continuous
  • Phase
    1 Phase 3 Phase
  • Rated Voltage (V)
    220 / 240 380 / 415
  • Rated Current (A)
    14.5Ax3 / 15Ax3 27.3Ax1 / 30Ax1
  • Rated Output (kVA)
    9.6 / 10.8 18.0 / 21.5
  • Power Factor
    1.0 0.8

Engine

  • Model (Manufacturer)
    V3600-T (Kubota)
  • Type
    Vertical,
    Water Cooled 4-Cycle, Dieseel Engine
  • Displacement (liters)
    3.620
  • Rated Output (kW/min-1)
    39.4 / 1500 44.9 / 1800
  • Fuel
    ASTM No. 2-D Fuel or Equivalent
  • Fuel Tank Capacity (liters)
    105
  • Lubricant Oil
    API Class CF
    or better (CJ excluded)a
  • Lubrication Oil Volume (liters)
    13.2 (Effective 4.4)
  • Cooling Water Volume (liters)
    6.0 (Sub-Tank Capacityy 1.1 L included)
  • Starting Motor Capacity (V - kW)
    12 - 3.0
  • Charging Alternator Capacity (V - W)
    12 - 360
  • Battery Capacity (V - Ah)
    12 - 55 (80D26R)

Compressor

  • Lubrication System
    Oil-free
  • Cooling System
    Air-cooling
  • Rated Output (kW)
    7.5
  • Working Pressure (PSI / MPa)
    116 / 0.8
  • Free Air Delivery (CFM)
    4 / 30

  • Dimension
    mm
  • Length
    1900
  • Width
    950
  • Height
    1515
  • Dry Weight (kg)
    1300
  • Net Weight (kg)
    1422
  • Sound level, no load @7m (dB)
    59 / 62
  • Spill containment
    Yes

Free Air Delivery - compressor capacity according to standard conditions ISO 1217: 1 bar abs. , 20 C, relative humidity 0%. CFM (Cubic Feet per Minute) - cubic feet per minute.
