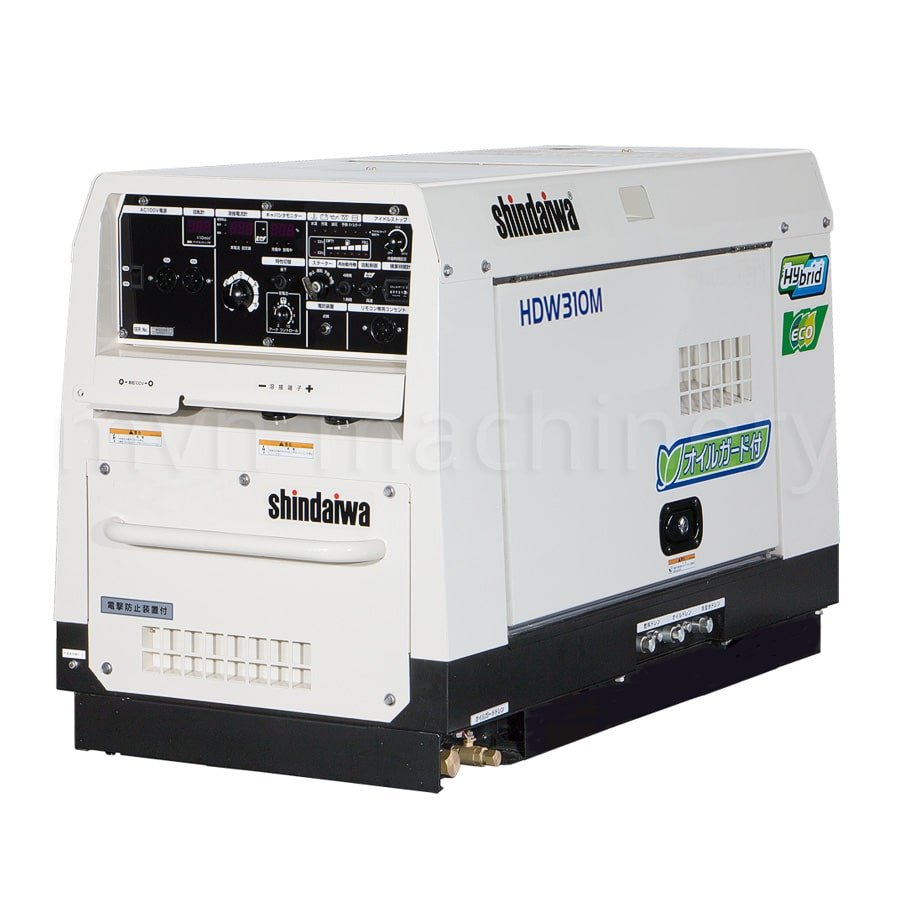

Driven Engine Welder HDW310M-I by the Japanese brand Shindaiwa. This a single welding station diesel unit, representing an enhanced version of the Shindaiwa DGW310 model. The diesel welder is characterized by low noise level due to noise insulation, special design of air exhaust. The welding device consists of a welding station with a rated current of 280A and a power generator with a capacity of 3 kW.
Key Advantages of Driven Engine Welder HDW310M-I:
- 100% duty cycle at 200A
- 50% duty cycle at 280A
- Fuel savings up to 60%;
- Noise level down to 55dB(A)
- 3 kVA generator
- 11 hours of welding and 15 hours in ECO mode
Special Benefits of HDW310M-I:
-
Quick arc initiation
Instantly produces an arc when the welding electrode lightly touches the metal. Enables fast and comfortable welding, even in idle mode or with electrical shock protection activated.
-
Welding arc stability
The welding arc is stable (without sags) and remains "sticky."
-
Instantaneous power generation
The inverter power generator in the HDW310M-I starts immediately upon engine activation, allowing for additional tasks like grinding, cutting, and drilling. The total load can reach 3 kVA (50/60 Hz) with a clean electrical signal.
-
Extremely Low Fuel Consumption
Diesel fuel consumption is approximately 60% less compared to the previous model (Shindaiwa DGW310). This significantly extends the overall operating time on a single refueling - 11 hours of welding and 15 hours in ECO mode.
Single Welding Station Diesel Unit HDW310M-I supports electrode welding in the range of 2.0 - 6.0 mm (2.0 - 6.0 mm in ECO mode).
Other Features of Welding Unit HDW310M-I:
- Simultaneous use of electrical power and welding
- Electrical shock protection.
- Ground leakage interrupter
- Frequency switching.
