DIESEL GENERATOR 20kW - DGK25F SHINDAIWA

Short description

DGK25F Shindaiwa reliable generator 20 kW (25 kVA) 1 or 3 phase connection. Stably supports the continuous operation of heavy machinery and other equipment..

Manufacturer Shindaiwa
Made in Japan
Product article DGK25F
Price 23875$ Contact for the special price

Warranty

DIESEL GENERATOR 20kW - DGK25F SHINDAIWA - full description

Robust Power Solution for Residential and Commercial Use.

The diesel generator 20kW (25kVA) with 1/3-phase capability is a reliable power solution for residential and commercial needs. With its 25kVA output, it ensures a stable power supply during outages or as a backup source. Its 1/3-phase configuration allows seamless integration with various electrical systems for versatile applications.

Dependable Support for Construction and Industrial Sites

The diesel generator 20kW with 1/3-phase capability is a dependable workhorse for construction and industrial sites. Its powerful 25kVA output runs heavy machinery and equipment without interruption. With rugged construction and 1/3-phase compatibility, it offers flexibility for various applications in demanding environments.

Versatile Power Solution for Events and Outdoor

The 25kVA diesel generator with 1/3-phase compatibility is an invaluable asset for events. Its 25kVA capacity handle lighting, sound systems, and more, ensuring a seamless experience. The 1/3-phase configuration supports diverse setups, making it ideal for successful events and outdoor endeavors.

DIESEL GENERATOR 20kW - DGK25F SHINDAIWA - Specifications

Generator

Generator Type

Revolving Field Brushless AC
Continuous output, 60Hz, 3 phase

20kW (25kVA)
Continuous output, 1 phase

215kW (15kVA) [7.5kW(7.5kVA)]
Standby output, 3 phase

22kW (27.5kVA)
Voltage, 3 phase (switchable)

240 [480V]
Voltage, 1 phase (switchable)

120, 139, 240 [277V]
Amps, 1 phase, 120V

62.5A x 2 [31.3A] (zig-zag-w)
Amps, 1 phase, 240V

62.5A [31.3A] (zig-zag-w)
Amps, 3 phase, 240V

60A
Amps, 3 phase, 480V

30A
Rated Frequency - Regulation

60Hz + 0.25%
Rated speed, 60Hz

1800 rpm
Sound level, no load at 23 feet

59 dB(A)
Sound level, full load at 23 feet

62 dB(A)

Diesel engine

Make, model and type

Isuzu 4LE2T, 4 cylinder
Emission certification

US EPA Tier 4 Final
Design features

Direct Injection, Turbocharged
Displacement

133 cu. in. (2.179 L)
Continuous rated output

33 hp @ 1800 rpm
Starting system

Electric 12V DC
Internal fuel capacity

51.5 gallons (195L)
Fuel consumption, full load

1.6 gal./hr (6.1L/hr)
Fuel consumption, 3/4 load

1.2 gal./hr (4.64L/hr)
Fuel consumption, 1/2 load

0.9 gal./hr (3.6L/hr)
Fuel consumption, 1/4 load

0.7 gal./hr (2.5L/hr)
Total coolant capacity

2.6 gallons (10L)
Total oil capacity / oil class

3.0 gal. (11.5L)

Physical characteristics

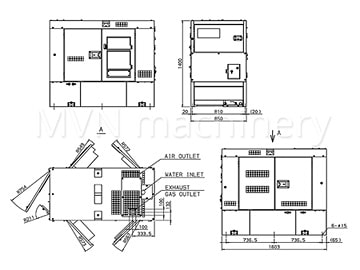

Dimensions (L x W x H)

63” x 33” x 55” (1603 x 850 x 1400mm)

Unit dry weight

1929 lbs (875kg)
