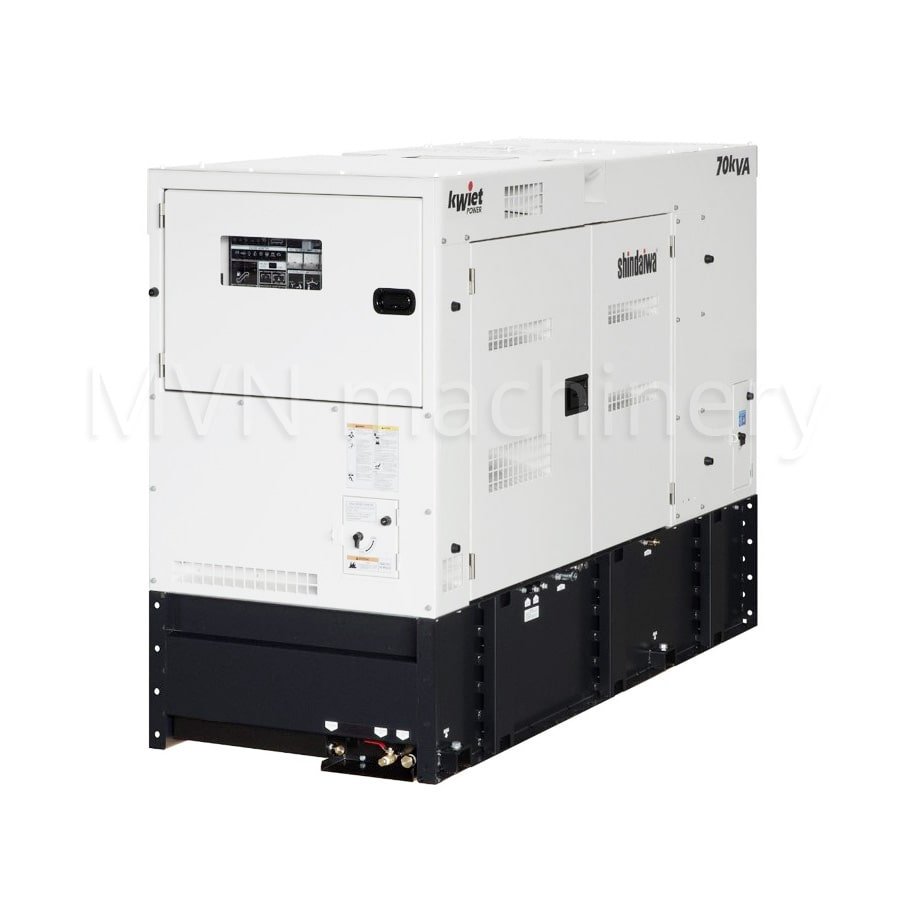

70 KVA GENERATOR SHINDAIWA DGK70F

Short description

Shindaiwa DGK70F is diesel generator 70 kVA (56 kW) with low nose level of 62 dBA. High quality and technical characteristics allow the use of a diesel generator in the business sector and private households.

Manufacturer Shindaiwa
Made in Japan
Product article DGK70F
Price 49200$ Contact for the special price

Warranty

70 KVA GENERATOR SHINDAIWA DGK70F - full description

Shindaiwa DGK70F is a diesel generator (70 kVA) based on the Japanese engine Isuzu 4JJ1 (4 cylinders). The device belongs to Revolving Field Brushless AC and can work in industrial and open facilities. The 70 kVA generator is equipped with a 7.4 gallon (28 L) fuel tank. At 50% load, fuel consumption is 2.5 gal/hr (9 L/hr).

Versatility DGK70F. The 1/3 phase configuration provides versatility making it valuable for a wide range of industries. The Shindaiwa DGK70F generator is a reliable solution designed to meet the high energy demands of various sectors. With a massive 70kVA output, the diesel generator provides reliable power during power outages or as a back-up source.

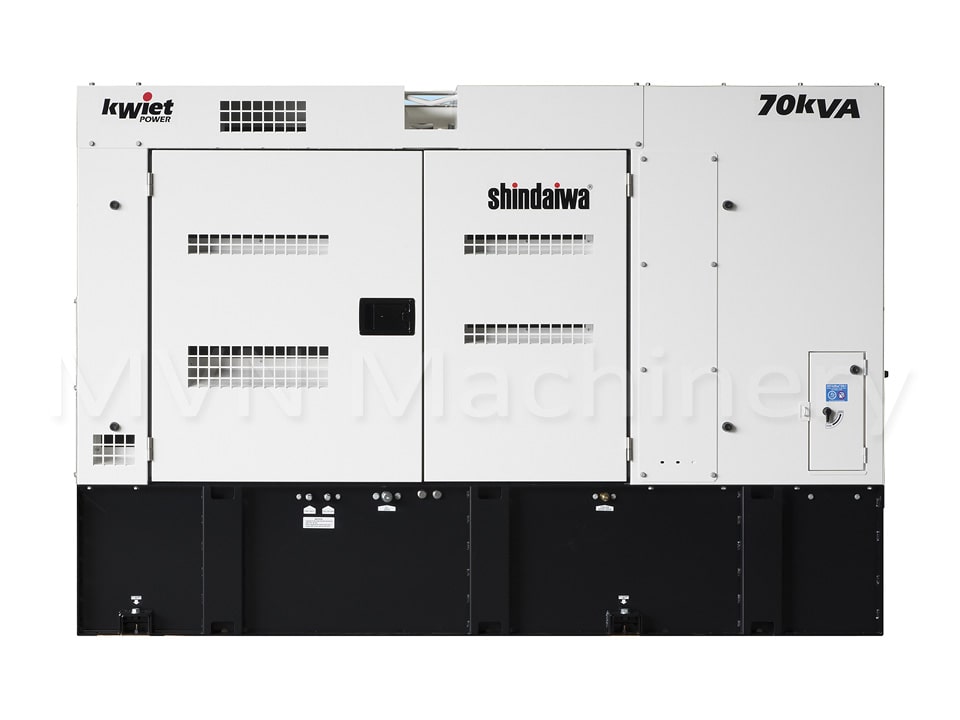

70 kVA generator Shindaiwa DGK70F side view

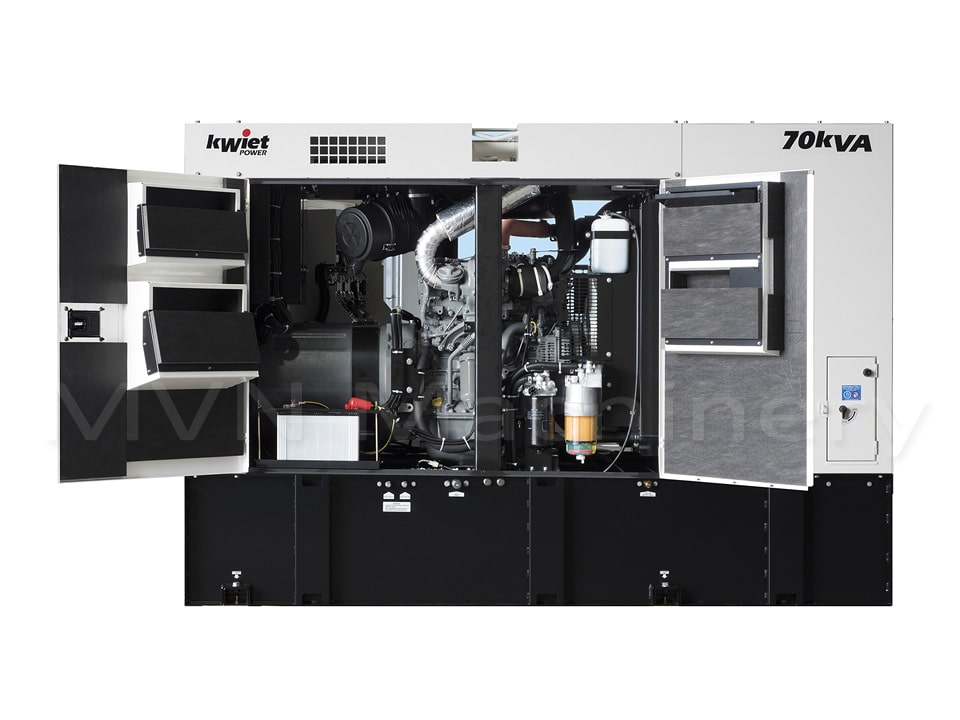

Generator DGK70F with open tech right doors

Generator DGK70F with open right doors

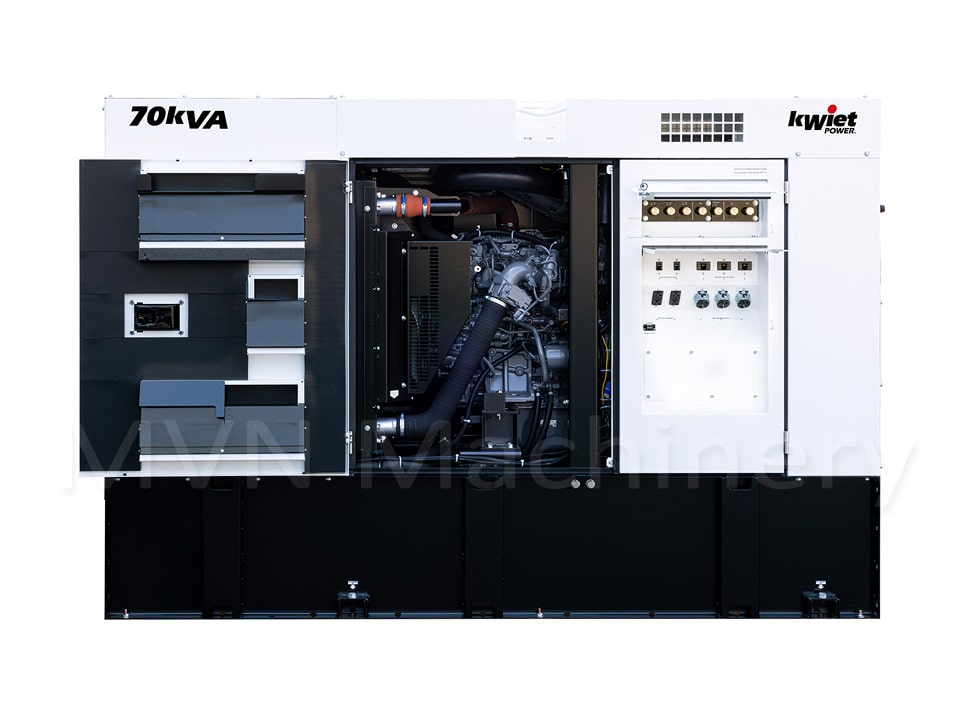

Shindaiwa DGK70F left side, open technical doors

The construction industry relies on the DGK70F generator for its robust power output (70 kVA / 56 kW), providing energy for heavy machinery and lighting setups on job sites.

In the industrial sector, 70 kVA generator serves as a critical backup power source for large-scale manufacturing facilities and processes, ensuring uninterrupted production.

In remote areas, the DGK70F generator becomes a lifeline for activities like mining, agriculture, and research expeditions, providing a stable and reliable power supply.

In summary, the diesel generator Shindaiwa DGK70F with 1/3-phase capability is a powerful and versatile solution, meeting the energy needs of different sectors and ensuring continuous operations in diverse environments.

70 KVA GENERATOR SHINDAIWA DGK70F - Specifications

Generator

Generator Type

Revolving Field Brushless AC
Continuous output, 60Hz, 3 phase

56kW (70 kVA)
Continuous output, 1 phase

42kW [21kW]
Standby output, 3 phase

61.6kW (77kVA)
Voltage, 3 phase (switchable)

240 [480V]
Voltage, 1 phase (switchable)

120, 139, 240 [277V]
Amps, 1 phase, 120V

175A x 2 [87.5A * 2] (zig-zag-w)
Amps, 1 phase, 240V

175A [87.5A] (zig-zag-w)
Amps, 3 phase, 240V

168A
Amps, 3 phase, 480V

84A
Rated Frequency - Regulation

60Hz + 0.25%
Rated speed, 60Hz

1800 rpm
Sound level, no load at 23 feet

61 dB(A)
Sound level, full load at 23 feet

62 dB(A)

Diesel Engine

Make, model and type

Isuzu 4JJ1X, 4 cylinder
Emission certification

US EPA Tier 4 Final
Design features

Direct Injection, Turbocharged, Intercooler, DOC and SCR
Displacement

183.0 cu. in. (2.999 L)
Continuous rated output

95.2 hp (71.0kW) @ 1800 rpm (60Hz)
Starting system

Electric 12V DC
Internal fuel capacity

105 gallons (400L)
Fuel consumption, full load

4.4 gal./hr (16.6L/hr)
Fuel consumption, 3/4 load

3.4 gal./hr (13.1L/hr)
Fuel consumption, 1/2 load

2.5 gal./hr (9.5L/hr)
Fuel consumption, 1/4 load

1.8 gal./hr (6.4L/hr)
Total coolant capacity

3.7 gallons (14.0L)
Total oil capacity / oil class

4.0 gal. (15.0L)
DEF tank capacity

7.4 gal. (28.OL)

Physical characteristics

Dimensions (L x W x H)

102″ x 37.5″ x 69″ (2590 x 951 x 1751 mm)

Unit dry weight

3898 lbs (1754kg)
